Q355B Prefabricated Steel Warehouse With Sandwich Panel

Certificación
CHINA Qingdao Ruly Steel Engineering Co.,Ltd certificaciones
CHINA Qingdao Ruly Steel Engineering Co.,Ltd certificaciones
Comentarios de cliente
Para ser honesto, no soy tan familiar con la estructura de acero al principio, pero me dan una oferta perfecta para ayudarme a terminar mi proyecto, buen trabajo, acero Ruly

—— Mike Guioguio

Plazo de expedición es rápido, y muy importante: el partido siempre enviado de los productos la orden. Los confío en porque nunca he estado decepcionado con ellos.

—— Mae Cena

Esta cooperación mutua dura por cerca de 4 años, y debe admitir que el servicio que proporcionan está sobre esperado.

—— Terry Shepley

Estoy en línea para chatear ahora

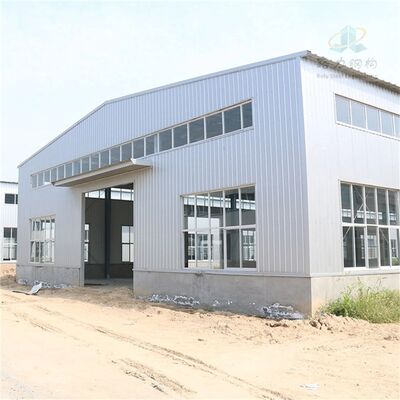

Q355B Prefabricated Steel Warehouse With Sandwich Panel

Q355B Prefabricated Steel Warehouse With Sandwich Panel
Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel Q355B Prefabricated Steel Warehouse With Sandwich Panel

Ampliación de imagen :  Q355B Prefabricated Steel Warehouse With Sandwich Panel

Datos del producto:
Lugar de origen: Qingdao, China
Nombre de la marca: Ruly Steel
Certificación: CE,AISC,SGS, BV, ISO,GB
Número de modelo: ReglaD00
Pago y Envío Términos:
Cantidad de orden mínima: 200 metros cuadrados
Precio: USD25-USD45 Per Square Meter
Detalles de empaquetado: 40HQ/Contenedor superior abierto
Tiempo de entrega: 20 dias
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 20,000 metros cuadrados o 1.500 toneladas al mes

Q355B Prefabricated Steel Warehouse With Sandwich Panel

descripción
Material de acero en bruto: Q235B, Q355B, ASTM A36 Tratamiento superficial: Pintura, Galvanizado en Caliente
Vida útil: 50 años Pared y techo: Hoja de revestimiento de acero, panel de sándwiches
Columnas y vigas: Acero a la s-sección Nivel de granallado: Sa 2.5
Certificación: CE, AISC, SGS, BV, ISO, GB Instalación: Guía de ingeniero en el sitio
Dibujo: CAD, Tekla, Modelo 3D, Pkpm, Bim Código Hs: 9406900090
Paquete de transporte: Paquete de exportación estándar o requisitos del cliente Capacidad de producción: 30000ton/año
Características: Estructura de acero prefabricada, amplio tramo, múltiples pisos Formulario de conexión: Conexión de perno
Parapeto: De acuerdo a lo pedido
Resaltar:

Q355B steel warehouse

,

prefabricated steel warehouse

,

sandwich panel steel structure

Q355B Prefabricated Steel Warehouse With Sandwich Panel
Product Attributes
  • Fast construction speed: Prefabricated steel structures are manufactured in factories and only require simple installation at the site, significantly shortening the construction cycle.
  • Good durability: Steel structure buildings can extend their service life through appropriate anti-corrosion treatment. The steel frame is made of ultra strong anti-corrosion and high-strength cold-rolled galvanized sheet.
  • Strong construction flexibility: The construction process of prefabricated steel structures is flexible and adaptable, capable of accommodating various complex construction environments and conditions.
  • High engineering quality: Prefabricated steel structures are manufactured and tested in factories, ensuring precise fabrication of components according to design requirements.
  • Excellent seismic performance: Due to the high strength and ductility of steel, prefabricated steel structures exhibit superior seismic performance.
  • Environmentally friendly and energy-saving: Prefabricated steel structures adopt zero-waste production, reducing the generation of construction waste.
Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q355 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q355 Welded H Section Steel
Purlin Q235 C and Z purlin
Knee bracing Q235 Angle Steel
Tie Bar Q235 Circular Steel Pipe
Bracing Q235 Round Bar
Column and Horizontal Bracing Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Window Aluminium Alloy Window / PVC Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Downspout PVC
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or galvanized.

Service Advantages

  • Exquisite craftsmanship: A skilled production team combined with advanced equipment customizes production plans for each project to ensure excellent quality.
  • One stop service: With rich project experience, we provide comprehensive and integrated proposals, from design to installation.
  • Strict quality control: A professional quality control team follows international standards to ensure that products and services perfectly meet your requirements.
  • High quality after-sales service: Quickly responds to customer needs, provides comprehensive maintenance services, and ensures long-term stable operation of the project.
Project Show

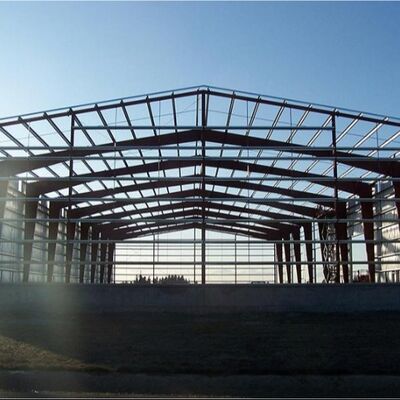

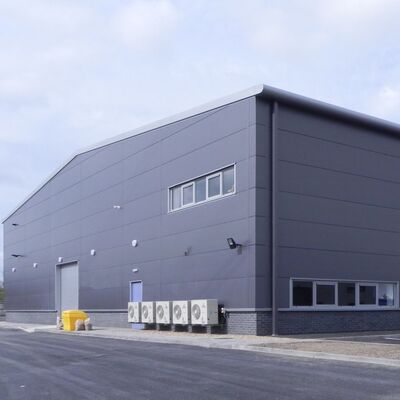

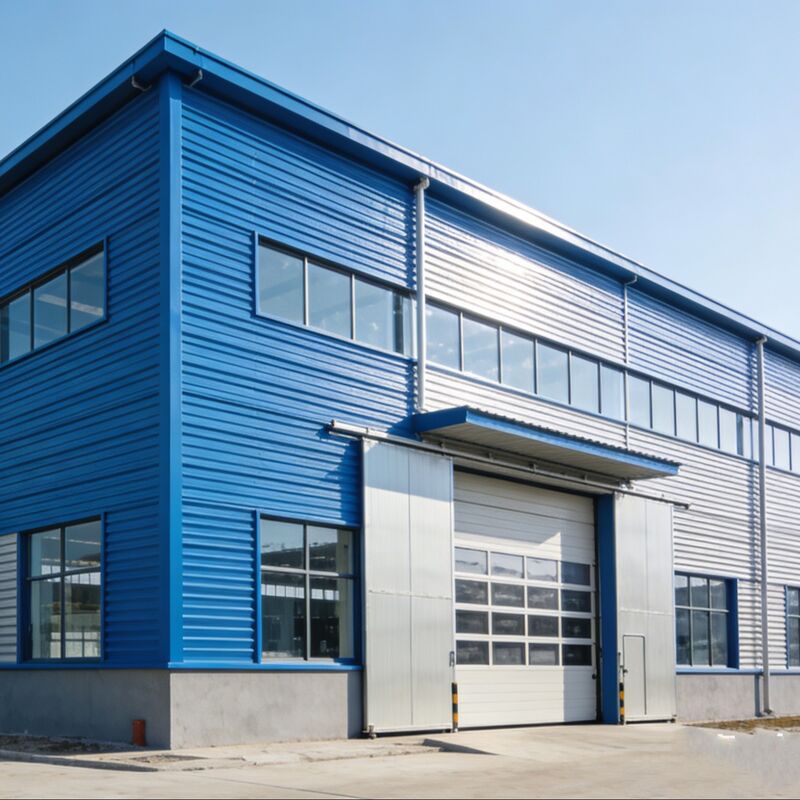

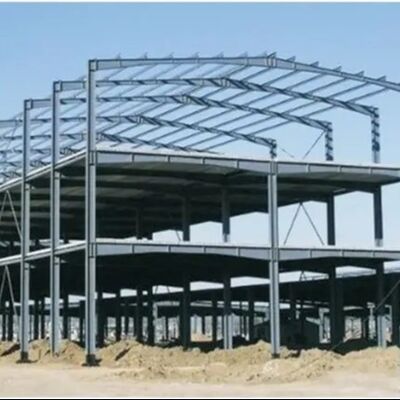

Prefabricated steel workshop building exteriorSteel structure warehouse interiorCertification

Industry certifications
Packing And Delivery
Steel structure packaging process
Client Visit
Customer visiting our facility
Frequently Asked Questions
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Can you send engineers or whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
Q: What is the delivery time?
A: Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
